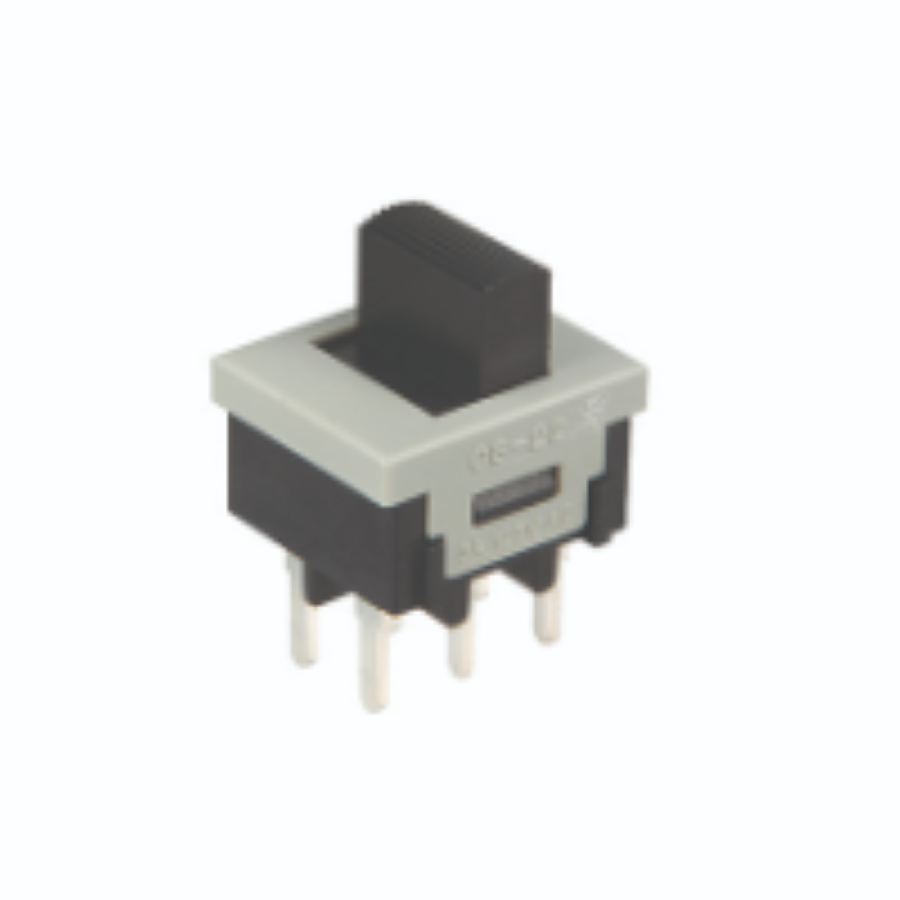

CS22BNW03
Manufacturer:
NKK Switches
Mfr.Part #:
CS22BNW03
Datasheet:
Description:
Slide Switches Through Hole ON - ON DPDT Current Rating:3 A Standard
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Depth | 11.9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Actuator Length | 5.1 mm |
| Throw Configuration | DPDT |
| Contact Style | Non-Shorting |
| Max Voltage Rating (AC) | 250 V |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 20 kcycles |
| Switch Travel | 2.2 mm |
| Actuator Material | Glass, Glass fibre, Nylon, Polyamide |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 3 A |
| Actuator Type | Standard |
| Termination Style | PC Pin |
Stock: 820
Distributors
pcbx
pcbxUnit Price$2.59044
Ext.Price$2.59044
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.59044 | $2.59044 |
| 10 | $2.37157 | $23.71570 |
| 25 | $2.29036 | $57.25900 |
| 50 | $2.16511 | $108.25550 |
| 100 | $2.04670 | $204.67000 |
| 300 | $1.92056 | $576.16800 |
| 500 | $1.80219 | $901.09500 |
| 1000 | $1.72097 | $1720.97000 |
